Screen recorder

Record your first video

1. In the module bar, click the record button. Its tooltip reads “Record the screen as an MP4 video (click again to stop)”.
2. If a countdown is set, wait for it to finish.
3. Do what you want to show.
4. Click the record button again, or Stop on the recording bar.
5. The video is an MP4 file, ready immediately. Open the last video plays it.

• The video is encoded while you record, so even a recording of several hours needs no waiting at the end.

Choose what to record

1. Click the small arrow next to the record button.
2. Under What to record, choose The WASDEV window (default), WASDEV's screen, or Draw an area… and drag a rectangle.
3. Choose the Frames per second.
4. Choose the Graphics card encoder if your PC has more than one graphics card.

Add your microphone and your camera

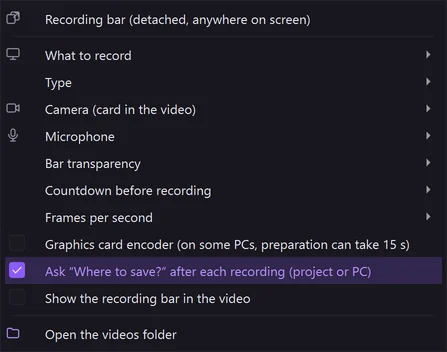

1. Open the recorder menu.
2. Under Microphone, choose the microphone to record your voice.
3. Under Camera (card in the video), choose a camera: your image appears in a small card inside the video.
4. Adjust the card with Card style, Background, Border color, Mirror and Image settings.

• Windows may ask you to allow access to the microphone and the camera the first time.

Set a countdown and the saving folder

1. Open the recorder menu and choose Countdown before recording.
2. Tick Ask “Where to save?” after each recording if you want to name each video, or leave it off to save in the default folder.
3. Open the videos folder shows the recordings.

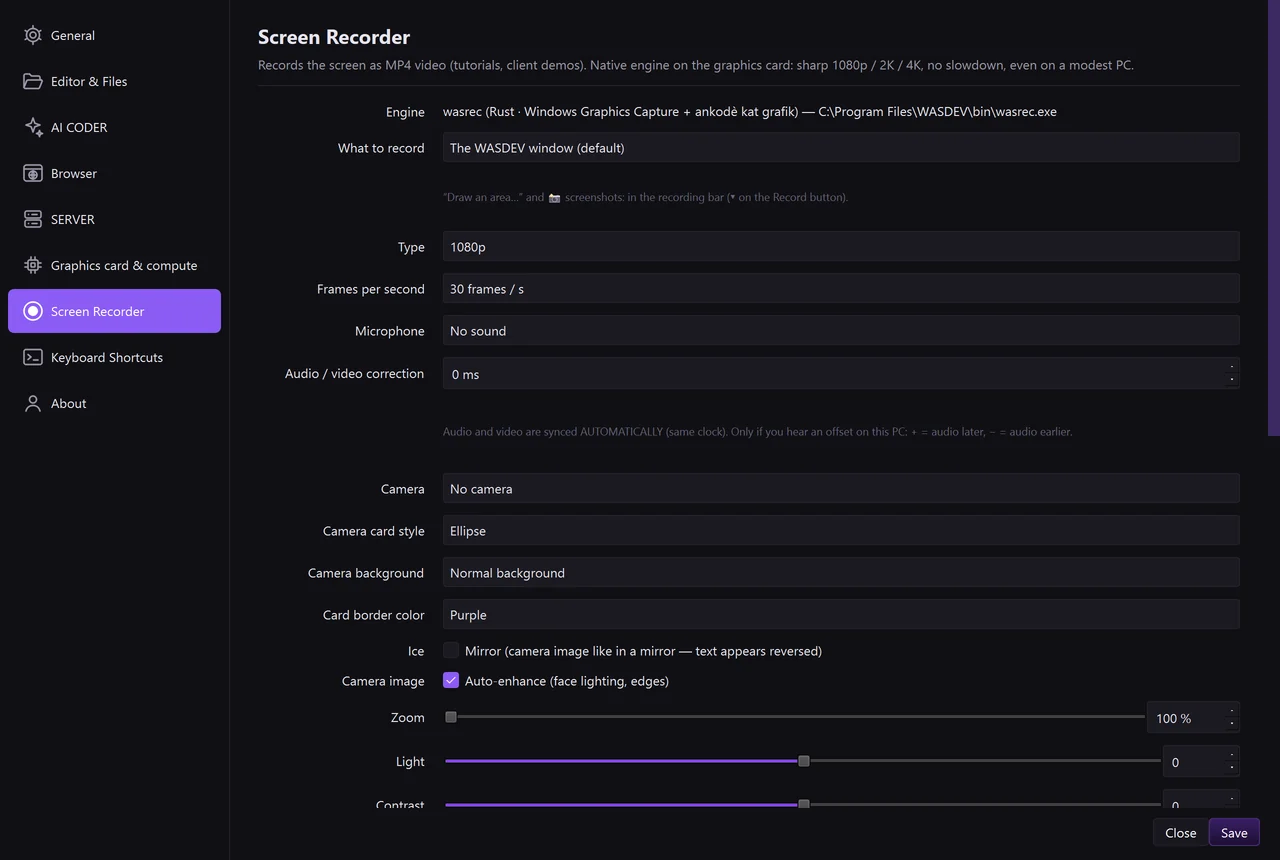

• All these options, and the Default folder, are also in Settings → Screen Recorder.
• Show the recording bar in the video decides whether the bar itself is visible in the recording.

Take a screenshot

1. Open the recorder menu and click Recording bar (detached, anywhere on screen) to show the bar.
2. On the bar, click Screenshot for the whole window, or Area and drag a rectangle.
3. The picture is saved with your recordings.

Let the AI record or capture

1. In the chat, ask for example: Take a screenshot of the window and tell me what is wrong with the layout.
2. The AI uses the WASDEV tools to capture the screen and reads the image.
